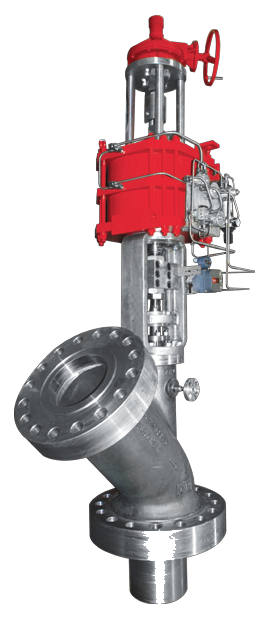

Angle Control Valve
Type Bottom Angle Control Valve Size DN50x25~DN500x450 / 2"x1"~20"x18" Pressure rating PN1.6~26 / ANSI 150~1500Lb Temperature range -196~650℃ Body material WCB, CF8, CF8M, Ti, C-276 Leakage class ANSI Ⅳ, Ⅴ or Ⅵ Cv 5~4250
| Type | Bottom Angle Control Valve |
|---|---|
| Size | DN50x25~DN500x450 / 2"x1"~20"x18" |
| Pressure rating | PN1.6~26 / ANSI 150~1500Lb |
| Temperature range | -196~650℃ |
| Body material | WCB, CF8, CF8M, Ti, C-276 |
| Leakage class | ANSI Ⅳ, Ⅴ or Ⅵ |
| Cv | 5~4250 |
